Meaning and interpretation of markup

Deutsch-Österreich. W3C-Büro

Fraunhofer Gesellschaft - Institut Medienkommunikation

1.X.2004

C. M. Sperberg-McQueen
World Wide Web Consortium
MIT Computer Science and Artificial Intelligence Laboratory (CSAIL)

TOC | First


Overview

previous table of contents next
1 of 49

Acknowledgements / Responsibilities

previous table of contents next
2 of 49
The Bechamel Project (‘semantic elucidation of XML’)
Virtues
  • Claus Huitfeldt (Universitetet i Bergen)
  • Allen Renear (University of Illinois at Urbana/Champaign)
  • David Dubin (University of Illinois at Urbana/Champaign)
Also: Kjersti Bjørnestad Berg, Paul Meurer, Sindre Sørensen.
Vices
  • C. M. Sperberg-McQueen

Goal of our work

previous table of contents next
3 of 49
to give an intellectually satisfying (and potentially useful) account of the meaning of markup.

Relation to similar work (I)

previous table of contents next
4 of 49
Various similar projects:
  • semantic annotation of schemas
  • ontology mapping problems
  • semantic extraction, semantic stores
    • translation / improved translation into RDF
    • translation / improved translation into topic maps

Relation to similar work (II)

previous table of contents next
5 of 49
Bechamel assumes we have yet to explain how markup means things.
  • What is ‘meaning’?
  • Are there universal rules governing the meaning of markup?
  • Are there common patterns observable in practice?
  • How can we document whether / the degree to which a transformation preserves / loses meaning?

Does markup have meaning?

previous table of contents next
6 of 49
Perhaps not; some people think not.
But perhaps it does after all.
  • What else can tags like chapter, name, person, abbr mean?
  • Why else do we guide our processing by the markup?
  • How else can we argue over whether a given tagging is correct or incorrect?

What kind of meaning?

previous table of contents next
7 of 49
Some salient characteristics:
  • artificial vocabularies, meaning specified and documented by designer
  • (or inferred and documented by data receiver)
  • not* the same as natural-language meaning: cf.
    "John" is a personal name.
    John loves Mary.
  • vocabulary-specific

Characteristics of markup vocabularies

previous table of contents next
8 of 49
  • possible synonymy: cf.
    <sic corr="receive">recieve</sic>
    <corr sic="recieve">receive</corr>
  • ambiguity* rather rare*
  • vagueness* / generality / variable detail not uncommon
  • predicate calculus truth-functional; markup can be performative or prescriptive
  • markup sometimes self-referential

Practical implications

previous table of contents next
9 of 49
A better grip on semantics ought to help with
  • inter-translation among vocabularies
  • retrieval across (or within) vocabularies
  • comparison of content
  • authenticity checking
  • finding relevant vocabularies
  • complexity measurement / design
But mostly, it's just interesting.

Working notion of meaning

previous table of contents next
10 of 49
... we shall accept that the meaning of A is the set of sentences S true because of A. The set S may also be called the set of consequences of A. Calling sentences of S consequences of A underscores the fact that there is an underlying logic which allows one to deduce that a sentence is a consequence of A.
Wladyslaw M. Turski and Thomas S. E. Maibaum, The specification of computer programs (Wokingham: Addison-Wesley, 1987), p. 4.

Specifying the meaning of markup

previous table of contents next
11 of 49
So ...
  • what inferences are licensed by each element type?
  • by each attribute?
  • for each location? (i.e. how do you associate the meaning with a particular instance?)

Two simple examples

previous table of contents next
12 of 49
Wittgenstein VW 103: 18r
Kann man aber wirklich so leben daß das Leben aufhört problematisch zu sein?
Wittgenstein, VW 108: 37
100 / Ich beschreibe eine↑n↓ Tatsache ↑Sachverhalt↓ doch nicht ↑dadurch↓ daß ich das erwähne was mit ihr↑m↓ nichts zu tun hat & constatiere daß ...

The markup

previous table of contents next
13 of 49
<R>96</R><sec>
<s>Kann man aber <d>wirklich</d> so leben
da&szlig; das Leben auf&shy;h&ouml;rt
problematisch zu sein?</s>
...
</sec>
<s>Ich beschreibe <p.em><p.em.el><uw1>eine<el>n</el>
<d>Tatsache</d></uw1> <i>Sachverhalt</i> doch nicht
<imw>dadurch</imw> da&szlig; ich das erw&auml;hne was
mit ih<p.o><p.o.el>r</p.o.el><p.o.el>m</p.o.el></p.o>
nichts zu tun hat &amp;
<p.trsn><p.trsn.el>c</p.trsn.el><p.trsn.el>k</p.trsn.el
></p.trsn>onstatiere da&szlig; ...</s>

Markup-related inferences

previous table of contents next
14 of 49

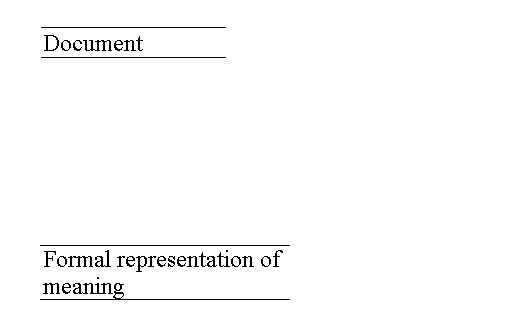

System overview

previous table of contents next
15 of 49
In the abstract, ...

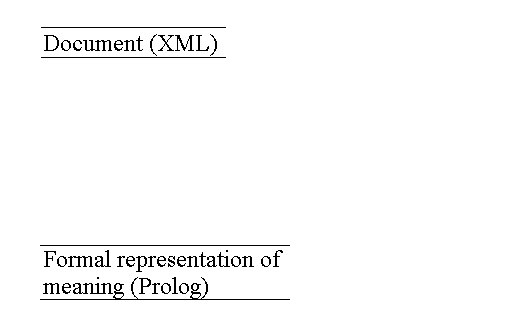

Concrete system overview

previous table of contents next
16 of 49
In practice:

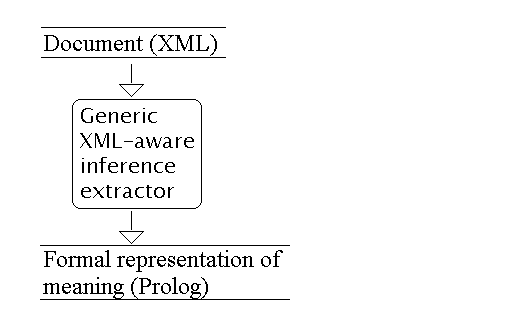

A possible goal

previous table of contents next
17 of 49
Is this the goal?

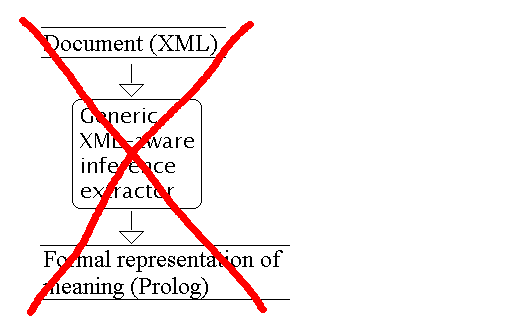

Rejection

previous table of contents next
18 of 49
It better not be.

Some premises

previous table of contents next
19 of 49
  • Rules are vocabulary-specific.
  • The coding <F>a</F> is both visually and semantically parallel to Fa
  • Definition of F to be provided ...
  • In many cases, the relevant property has arity > 1: F(a,b), F(a,b,c), ...
  • As a consequence:
    • We need deixis.
    • Argument structure is crucial.

DTD-specific interpretation

previous table of contents next
20 of 49
<title level="j">CHum</title>
"node X is a title, with 'level' = 'j'"
"there exists a journal called CHum"

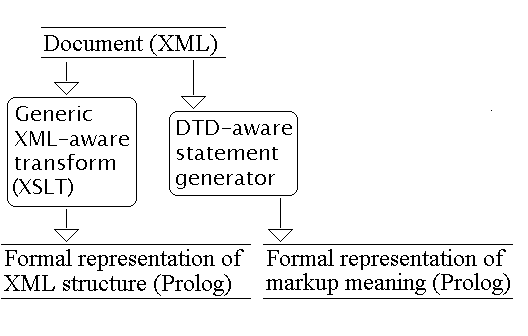

System overview

previous table of contents next
21 of 49

Image sentences

previous table of contents next
22 of 49
Image sentences are about information items in the XML information set:
node(n8365).
node(n8366).
...
gi(n8365,s).
gi(n8374,d).
gi(n8375,'#pcdata').
gi(n8377,i).
gi(n8378,'#pcdata').
...
content(n8366,"Ich beschreibe ").
content(n8375,"Tatsache").
content(n8378,"Sachverhalt").
...
first_child(n8365,n8365).
first_child(n8367,n8368).
...
nsib(n8357,n8365).
nsib(n8365,n8367).
...
parent(n8365,n8357).
...

Application sentences

previous table of contents next
23 of 49
Application sentences are about objects in the application domain. For the Wittgenstein project, for example:
char(c174832, 'T', 174832).
char(c174833, 'a', 174833).
char(c174834, 't', 174834).
char(c174835, 's', 174835).
char(c174836, 'a', 174836).
char(c174837, 'c', 174837).
char(c174838, 'h', 174838).
char(c174839, 'e', 174839).
deleted(c174832).
deleted(c174833).
deleted(c174834). ...
For a purchase order application:
purchase_order(p123).
po_shippingaddress(p123,a45).
po_billingaddress(p123,a46).

relation_applies(shipto,[p123,a45]).
relation_applies(billto,[p123,a46]).

Metadata example

previous table of contents next
24 of 49
<doc>
 <code-version>mecs102</code-version>
 <group>Manuscripts</group>
 <group>B&#x3A3;nde</group>
 <catno>108</catno>
 <ti>Band IV Philosophische Bemerkungen</ti>
 <crncopy>10</crncopy>
 <datfrom>19291213</datfrom>
 <datto>19300809</datto>
 <transcribers>Claus Huitfeldt 1984, Alois Pichler 1991</transcribers>
 <proofreaders>Ole Letnes 1992</proofreaders>
 <revisionhistory>Transcribed by Claus Huitfeldt July 1984 &#x2010;
  February 1985. Recoded from CT I to CT IIb by Claus Huitfeldt
  881002. Recoded from NWP to WAB registration standard 911031;
  recoded from mecs101 to mecs102 920212. Retranscribed by Alois
  Pichler 1991. Special notations, Protocols und Typography M&#xE4;rz
  1992. Erste Korrektur Ole Letnes April bis Juni 1992. Vergleich mit
  dem Original Herbst 1992; korrigiert nach diesem Vergleich September
  1995. Spellcheck by Maria Sollohub and Alois Pichler,
  September 1995.</revisionhistory>
 <hands>H1, H2</hands>
 ...
 </doc>

Some inferences

previous table of contents next
25 of 49

Formal inferences

previous table of contents next
26 of 49

Dates

previous table of contents next
27 of 49
The item transcribed in file vw108 is estimated to have been written on or after 13 December 1929.
... item_a_quo(i,'1929-12-13')
The item transcribed in file vw108 is estimated to have been written on or before 9 August 1930.
... item_ad_quem(i,'1930-08-09')

Markup about markup

previous table of contents next
28 of 49
The transcription in vw108 was made by “Claus Huitfeldt 1984, Alois Pichler 1991”.
... (∃ p : persons)
    (transcribes_as(p, i, m)
    & nl_describes(
      "Claus Huitfeldt 1984, Alois Pichler 1991",
      p)))
The transcription in vw108 was proofread by “Ole Letnes 1992”.
... (∃ p : persons)
    (proofreads_against(p, m, i)
    & nl_describes("Ole Letnes 1992", p)))

Another approach

previous table of contents next
29 of 49
<title level="j">CHum</title>
"node X is a title, with 'level' = 'j'"
"if there exists an element of type 'title' with 'level' = 'j', then there exists a journal whose name is spelled by the contents of the element"

Inference rules

previous table of contents next
30 of 49
To make inference rules, we
  • replace names with variables
  • describe the conditions under which the conclusion is valid
  • wrap the conditional in variable bindings
The contents of a transcription element e provide a natural-language description of the person(s) who transcribed the document containing e.
(∀ n : node) (∀ m : node)
(∀ i : item) (∀ s : string)
  (gi(n,'transcribers') & contents(n,s)
  & root(n,m) & transcribes(m,i)
  ⇒ (∃ p : persons)
    (transcribes_as(p, i, m)
    & nl_describes(s, p)))

Formalized tag set description

previous table of contents next
31 of 49
The formalized tag-set documentation for TEI (in part):
<attribute match="@lang">
<doc>
<p>If an element has a <ident>lang</ident>
attribute, the attribute value names the
language of the element's content (unless
overridden).</p>
</doc>
<rule distributed="true" lang="Prolog">
lang(<de xv="../@id"/>,.) :- !.
</rule>
<doc>
<p>Otherwise, the language is the same as that
of the parent element.</p>
</doc>
<rule distributed="false" lang="Prolog">
lang(E,L) :- parent(P,E), lang(P,L).
</rule>
</attribute>

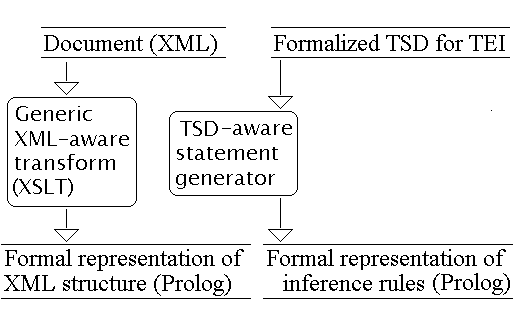

An alternative system design

previous table of contents next
32 of 49

Challenges

previous table of contents next
33 of 49

Distributed properties

previous table of contents next
34 of 49
If the word Tatsache is deleted, then the letter T is deleted.
If the word Indenture is rendered in black-letter, then its initial letter I is rendered in black-letter.
Consider this (from Tristram Shandy):
<hi rend="gothic">And this Indenture
further witnesseth</hi> that the said
<hi rend="italic">Walter Shandy</hi>,
merchant, in consideration of the said
intended marriage ...

A synonymous example:

previous table of contents next
35 of 49
Or equivalently*:
  <p><hi rend="gothic">And</hi>
  <hi rend="gothic">this</hi>
  <hi rend="gothic">Indenture</hi>
  <hi rend="gothic">further</hi>
  <hi rend="gothic">witnesseth</hi> that the said
  <hi rend="italic">Walter Shandy</hi>,
  merchant, in consideration of the said
  intended marriage ... </P>
These examples license the same inferences.

Inheritance

previous table of contents next
36 of 49
Distributed properties: commonly inherited.
If an ancestor is in English (has lang="en"), then this element also is in English.

Non-distributed properties

previous table of contents next
37 of 49
Non-distributed properties are true of the element as a whole, but not true of all of the individual words or characters of the content. From the markup
  <P>Reader, I married him.</P>
we can infer the existence of one paragraph, but we cannot infer that the word Reader is itself a paragraph. We can, however, infer that it has the property of being within a paragraph.

Overrides and incompatibilities

previous table of contents next
38 of 49
Consider:
<doc lang="en">
<p>Wittgenstein wrote:
<q lang="de"><ital>Die Welt ist alles,
was der Fall ist.</ital></q>
It is hard to escape, at first reading,
the suspicion that Wittgenstein is guilty
here of a gross platitude; it is only
after reading the rest of the
<title lang="la">Tractatus</title> that on returning
to its famous first sentence one appreciates
the depths of its intension.</p>
</doc>

Overrides

previous table of contents next
39 of 49
If an ancestor is in English (has lang="en"), then this element also is in English.

Overrides

previous table of contents next
40 of 49
If an ancestor is in English (has lang="en"), then this element also is in English.
If an ancestor is in English (has lang="en"), then this element also is in English, unless this element or an ancestor has a different value for lang.

Milestones

previous table of contents next
41 of 49
Generally, inferences about an element (or about what it represents) rely on the generic identifier and attributes of
  • the element
  • its ancestors
But how do we know what page a word is on?
Typically, the page is not an ancestor of the paragraph.

References to the same individual

previous table of contents next
42 of 49
When we speak of “the item transcribed by this MECS-WIT document”, or “the bibliographic item described by the enclosing bibl element”, how do we translate the the?
Existential assertion:
(there exists x)
  (bib_item(x)
  & bibl_item_desc(x,[[.]])
  & (∀ y)(bibl_item_desc(y,[[.]]) ↔ x = y))
and reference:
title(.)
& (∀ x)
  (bibl_item_desc(x, [[ancestor::bibl]])
    → bib_item_title(x,[[.]])]

Completeness

previous table of contents next
43 of 49
Can we really expect to list "all and only the inferences licensed by the markup"?
No: we cannot list them all (infinite set).
We may be able to identify a basis (a finite set of sentences from which the members of the infinite set follow).
Or maybe not?

Ontology and reference

previous table of contents next
44 of 49
What do the deictic expressions actually denote?
  • the element (in this encoding)
  • the text (= this rule asserts that in the text there is some (component?) part which is represented by this XML element in this encoding, and that that component has some property.
  • some referent of the text
  • some other encoding or representation of the text
  • the words or characters contained* (except for notes, etc.) within this element (but N.B. deletions, insertions)

Ontology examples

previous table of contents next
45 of 49
  • the element (This TEI header was last updated 2001-06-15.)
  • the text (This work [i.e. Peer Gynt] was created in 1874)
  • some referent of the text (Henrik Ibsen was born in ...)
  • the words or characters contained in this element (The string "Ibsen" is a proper noun here — not the name element)
  • some other encoding or representation of the text (A page-break occurs at this point in the edition of 1874)

Desert landscape

previous table of contents next
46 of 49
char(c174832, 'T', 174832).
char(c174833, 'a', 174833).
char(c174834, 't', 174834).
...
deleted(c174832).
deleted(c174833).
deleted(c174834). ...

deletion(d342, c174832, c174839).
Do deletions exist?

A ‘desert landscape’ view

previous table of contents next
47 of 49
The Wittgenstein transcripts postulate
  • the manuscript
  • the transcription
  • pages
  • text blocks (main block, left margin, ...)
  • characters
And possibly also
  • the von Wright catalog and its entries
  • words and sentences as described by Duden
  • people
  • dates
  • MECS-WIT version numbers
The name desert landscape is borrowed from W.V.O. Quine.

A ‘fertile valley’ view

previous table of contents next
48 of 49
We may also postulate
  • sections
  • revisions
  • acts of deletion
  • insertions
  • formulae
  • quotations
  • names, dates, things, ...

Thank you

previous table of contents next
49 of 49
